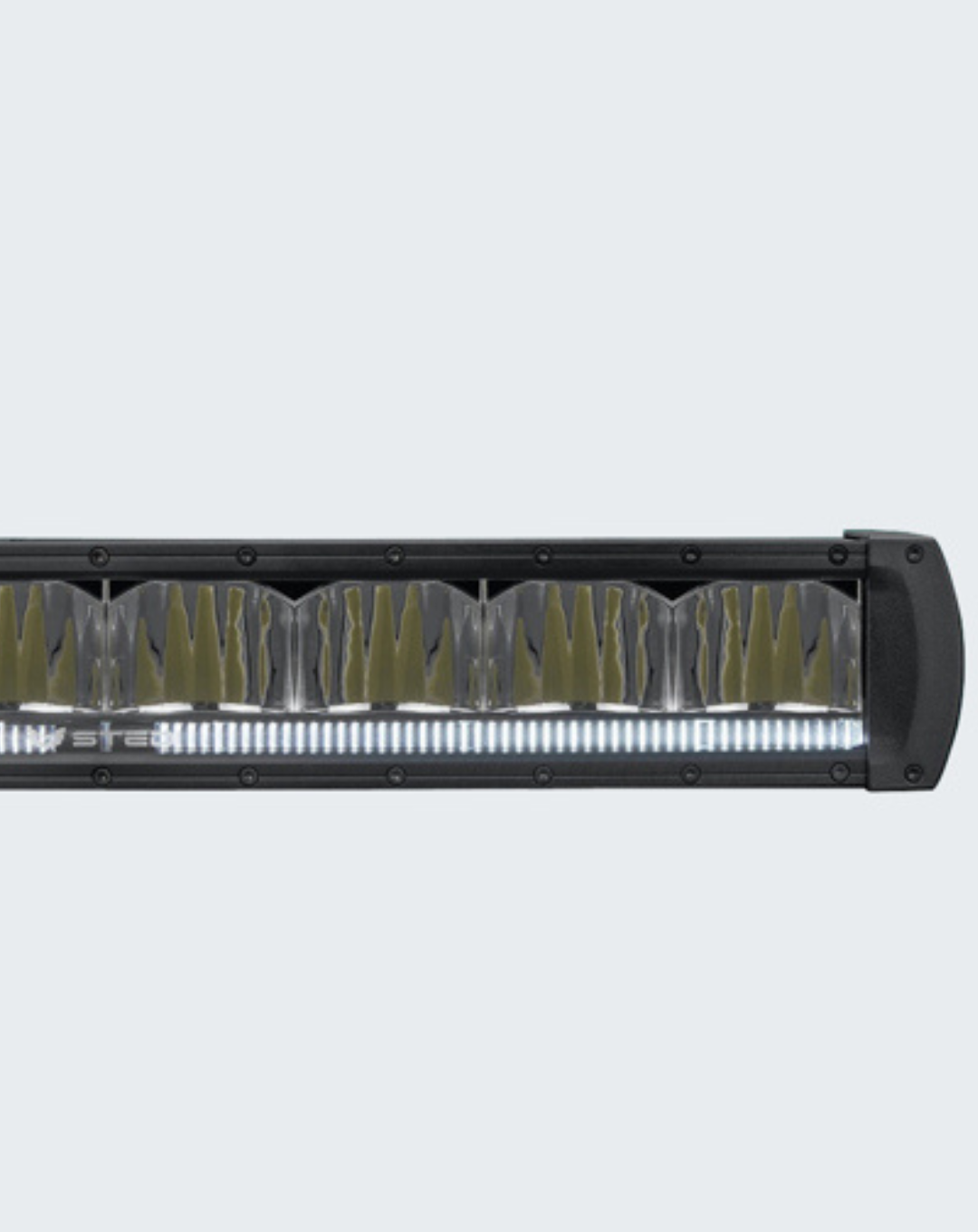

CURVED 50.8" ST2K SUPER DRIVE 20 LED LIGHT BAR

ADVANTAGES OF A LATERAL SPOT BEAM

• Excellent well rounded mid to long-range illumination
• Significantly minimizes adverse reflection from road signs
• Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
• An excellent alternative to HID, without the associated downsides
• The beam is 90m wide at approx 250m

KEY FEATURES

• LED Parking / Position Light Function
• Breather allows pressure equalization when rapid heat up and cool down cycles occur.
• Anodized Polyester Powder Coat
• Weatherproof Deutsch® DT2 Connector.
• Includes adjustable side brackets
• Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (compatible with both negative and positive switched vehicles).
• Protected against reverse polarity
• Shockproof, IP68 waterproof, UV Shielded
• Protected against RFI / EMC Interference
• Voltage & current surge protection
• Pulse Width Modulation Thermal Management
• MAIN BEAM LED COUNT 20 x 15W VOLTAGE 12V & 24V LENS MATERIAL Optical Grade, Hard Coated Lexan LUMENS 20,000 HOUSING MATERIAL 6063 Extrusion AMPERES 20.7A @ 13.2v LIFESPAN 50,000 SPOT BEAM Driving Beam INGRESS PROTECTION IP68 OPERATING TEMP -40°C ~ +150°C WEIGHT 5.790kg CERTIFICATES E-Mark R10 | CE ✓
