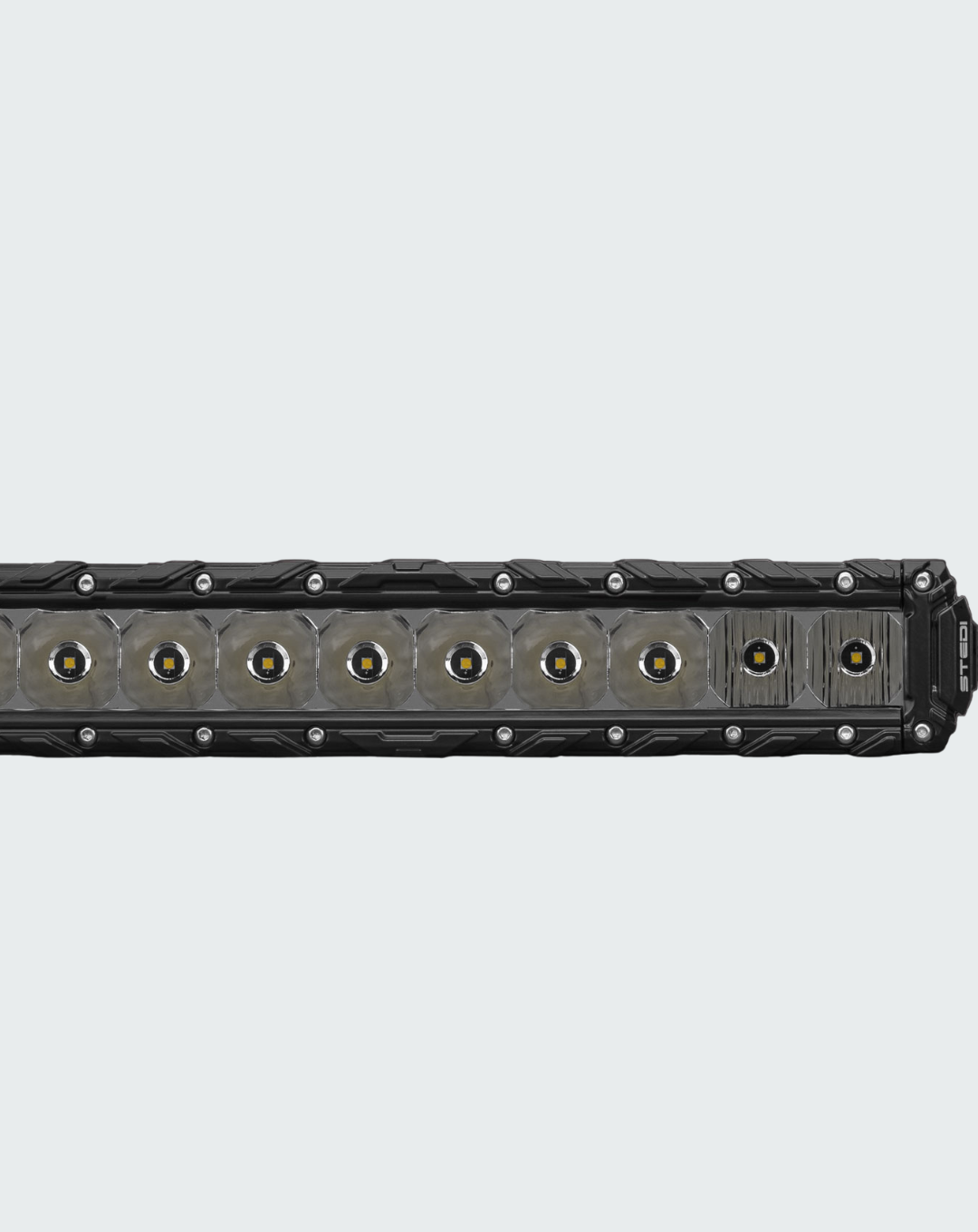

STEDI ST3K 31.5" 30 LED SLIM LED LIGHT BAR

MARKET LEADING PERFORMANCE.

ST3K-30L features 30 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch DT-2 connector.

Protected against EMC and RFI.

Protected against EMC and RFI.

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems



LED 30 x Osram Oslon White Effective Lumen 6,150Lm Peak Intensity (Candela) 364,800cd Operating Voltage 10-30V DC IP Rating IP68  Current Draw 6.5A @ 13.6v  Colour Temperature (CCT) 5700 Kelvin Housing Material Aluminium Extrusion & Cast Lens GE™ Lexan Mounting Bracket Powder Coated 3mm Stainless Steel Bolts and FIttings 3 Series Stainless Steel Beam Type Flood Spot Combo Life Span 50,000 Hours Weight 2.640 Operating Environment  -40 - +50° Celsius PHOTOMETRIC DATA   10 M 3,612 lX 50 M 144 Lx 100 M 36 Lx 200 M 9 Lx 601 M 1 Lx
